Scout.

Field enrollment redefined.
Full palm, dual iris multimodal biometric capture.

From frontline border checks to investigative operations and crime scene enrolment, field teams need biometric tools that deliver both precision and mobility. Grabba Scout provides fast, high integrity identity enrolment with integrated full palm, dual iris, and multimodal capture in a single mobile device.

Purpose‑built for field operations, Scout enables operators to perform accurate biometric enrolments on the spot. With rugged construction, reliable results, and compatibility with Android, Windows, and iOS, Scout is a powerful, field‑ready multimodal enrolment platform.

  • Certifications:
    FBI Appendix-F Certified Palm Scanner
    FBI Appendix-P Compliant Palm Scanner
    FBI CJIS CPL Tested

  • Technologies: Choose from eight biometrics and biographic capture components. Details >

  • Devices: Android, Windows, and iOS

  • Size: 173mm W x 280mm L x 45mm D

  • Charging: USB-C 65W Power Delivery

  • Battery Capacity: 1500mAh0

Field enrollment in a stand alone mobile unit

Scout equips frontline teams with everything they need for rapid, accurate biometric enrolment, no additional hardware, cables, or workstation setup required. Its integrated design enables complete enrolment anywhere, from border checkpoints to remote field operations.

Full palm (FAP60), dual iris and multimodal capture

With full palm FAP60, dual iris, and multimodal capture built into one integrated mobile device, advanced evidentiary grade biometrics are now available in the field. Scout enables comprehensive enrolment capabilities for field operations in a single, deploy anywhere solution.

Secure, accurate and rugged

Purpose‑built for demanding environments, Scout combines rugged durability with secure, high‑precision biometric performance. It delivers consistent, reliable results in unpredictable conditions, ensuring field teams can capture trusted, defensible enrolments wherever operations take them.

Quality

Built in Grabba Technologies AS9100D certified production facility for a best in class solution.

Rugged

Made with polycarbonate and TPU rubber to resist impact and endure shocks and vibrations.

Ergonomic

Designed for simple and efficient hand held operation.

Technologies

Best of breed biometric and data capture technologies.

Facial Biometrics.

  • Face Scan.

    Using the phone's camera, reliably and accurately capture and process facial images for both individuals and group situations. The Facial Capture with liveness detection, analysis and matching capabilities meet the highest levels of industry certification.

    Vendor
    Grabba
    Supported Platforms
    iOS, Android, Windows
    Certifications
    ISO/IEC 19794-5 and INCITS 385-2004
    iBeta/NIST Level 1 and Level 2 ISO/IEC 30107-3 PAD

    Key Features

    Analysis - Face detection, masked face recognition, pose measurements, facial coordinates and sizing, person counting.
    Liveness - Frictionless Passive
    Matching - LFW benchmark match accuracy of 99.85%

Iris Scanner.

  • Iris ID Dual Iris Scanner.

    A compact, lightweight Iris recognition module featuring a multi‑sensor auto‑focus Iris and Face capture USB camera system. Dual Iris simultaneous cameras with NIR illumination enable an iris capture sequence in less than one second range. TOF for Distance measurement. Self‑authentication is possible with user prompting on surface glass and multi‑color LED indicators.

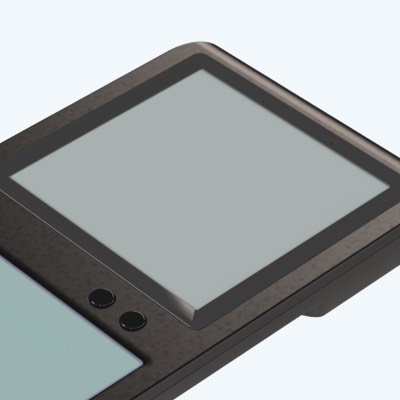

Palm Scanner.

  • Integrated Biometrics FAP 60 Palm Scanner.

    Delivers high quality palm and fingerprint capture in a compact rugged design, with advanced LES technology for fast accurate enrolment in demanding field environments.

    Certification

    Appendix F-Certified and Appendix P-Compliant, FAP 60

    Capture Modes

    500 PPI fingerprint capture supporting rolls and flats

    Capture Technology

    LES ZTX

    Capture Area

    FAP 60 : 127.0 mm x 127.0 mm

    Sensor Resolution

    500 ppi

Barcode Reader.

  • Zebra 1D/2D Barcode Scanner.

    High-performance scanning in an easy-to-integrate form factor that uses unsurpassed decode algorithms enabling first time capture of virtually any barcode printed on paper labels or displayed on mobile phones. With the bright, rectangular illumination field and LED aiming spot, users will instantly know if they are aiming at the right spot.

    Read Range Maximum

    2.8 - 49.5cm (1.5 - 19.5")

    Read Angle

    60d horizontal x 60d vertical

    Read Range Comparative

    4.5 - 49.5cm (1.8 - 19.5")

    OCR Support

    N/A

    Supported Barcode Symbologies

    Codabar, Code 11, Code 128, Code 2 of 5 (and variants), Code 39, Code 93, UPC/EAN family, Interleaved 2 of 5, Discrete 2 of 5, MSI, GS1‑128, GS1 DataBar (RSS), Bookland EAN, Matrix 2 of 5, Tri-optic, QR Code, Micro QR, Data Matrix, Aztec Code, MaxiCode, PDF417, MicroPDF417, Composite Codes (CC‑A, CC‑B, CC‑C)

RFID Reader.

  • Dual Frequency RFID.

    HID Global operates worldwide providing proven and trusted identification solutions. Their iClass SE dual reader module implements a multi-layered approach that adds mutual authentication and data encryption to the card scanning process, ensuring security and privacy.

    Vendor

    HID - iClass SE

    Frequency(s)

    13.56MHz, 125kHz

    Supported Technologies

    ISO14443A/B ISO15693, FeliCa™ (IDm) MIFARE® Classic, MIFARE DESFire® 0.6, MIFARE DESFire EV1, HID: iCLASS® Standard/SE/SR/Seos;
    PIV II, Secure Identity Object® (SIO®) HID Prox, Indala Prox, EM4102, AWID Prox

MRZ Reader.

  • HID MRZ Reader.

    An Optical Character Recognition (OCR) swipe reader capable of decoding Visas, e-Passports and various National Identity documents.

    OCR Fonts

    OCR-B, E13B

    Field of view (object height)

    19.6 mm nominal

    Standards

    ICAO 9303. ISO/IEC 7501-1 (2 and 3-line MRZ). ISO/IEC 18013-1

    Machine Readable Passports

    2 lines of 44 characters

    Machine Readable Visas

    2 lines of 36 or 44 characters

    ID / Travel Documents

    1 line of 30 characters. 2 lines of 36 characters. 3 lines of 30 characters

Mobile biometrics in action.

US Customs & Border Protection reported that Grabba changed the way outbound operations work – freeing officers to be more mobile, instantly receiving information about a subject whilst not requiring specialised equipment to work.

Grabba “gave our officers the capability to do law enforcement and biometric queries on a smartphone”. It is an “efficient device that officers on the frontline say is having an impact.”

US Customs & Border Protection reported that Grabba changed the way outbound operations work – freeing officers to be more mobile, instantly receiving information about a subject whilst not requiring specialised equipment to work.

Grabba “gave our officers the capability to do law enforcement and biometric queries on a smartphone”. It is an “efficient device that officers on the frontline say is having an impact.”

Supported by Grabba Care.

Extended Warranty

Extended period of coverage for factory faulty products or accessories.
Worldwide repair facilities.

Technical Help

Dedicated engineering team for software and hardware support.
SDK’s and Sample Code available.

Supported by Grabba Care.

Extended Warranty

Extended period of coverage for factory faulty products or accessories.
Worldwide repair facilities.

Technical Help

Dedicated engineering team for software and hardware support.
SDK’s and Sample Code available.

How can we help?

Grabba has over 20 years of experience in the design, creation, and implementation of data capture and identification technologies.

We’re driven by a passion for R&D and delivering solutions that efficiently, accurately and securely fulfil our customers missions.
